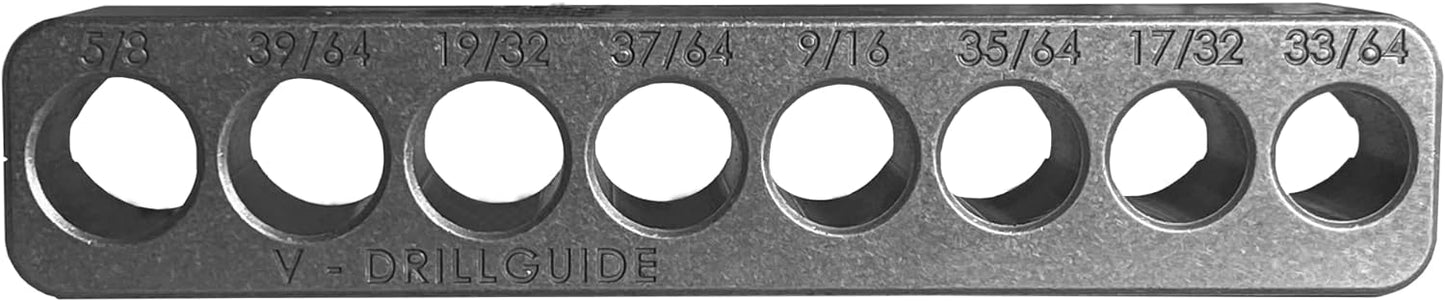

Standard V-DrillGuide (33/64"-5/8") - Big Gator Tools Drill Bit Guide - STD3000DGNP

Standard V-DrillGuide (33/64"-5/8") - Big Gator Tools Drill Bit Guide - STD3000DGNP

$35.95 USD
$35.95 USD
Sale Sold out

Benefits & Features

Drill Guide on corner metal piece showing hashmarks

Base of V-DrillGuide showing flat base and v-groove. All steel tool

hashmarks on side of v-drillguide

V-DrillGuide drilling straight holes on wood. Can be used on plastic or metal. All American Steel!

V-Groove

All V-DrillGuides have a "v-groove" on the bottom of the guide. This groove allows work on corners or round surfaces. The entire groove is made of steel that's heat-treated for durability.

Flat Base

The Flat Base can be found of the bottom of all V-DrillGuides. This precision ground base can be used on flat surfaces. This American-made tool is 100% steel.

Alignment Markings

Drill hole centering alignment marks or hashmarks are provided on both sides of the V-DrillGuides. Easily line up the V-DrillGuide when perfection is required!

Embedded Numbers

Hole sizes are embedded into the steel. Durable and tough, no wear for these numbers. The American-steel will withstand shop use and help with accuracy.
STANDARD V-DRILLGUIDE STD3000DGNP drill straight all the time using the drill bit guide, USA-made!

Drill accurately on cylindrical stock!

Metric V-DrillGuide 3-9.5mm, 17 hole - MDG1000DGNP
Standard or Metric Sizing Available

Currently there are (6) different V-DrillGuides available: (4) Standard Sizes and (2) Metric Sizes. Individual or in a Drill Set

  • All the same features
  • Standard or Metric Sizing
  • (4) V-DrillGuides with Standard Sizes from #10-5/8"
  • (2) V-DrillGuides with Metric Sizing from 3mm-14mm

Drilling made easy! Accurate holes for any project

Take out the guess work when perfection is required

Easy to use: hole the drill guide on the material, clamp and drill.

  • Use on flat surfaces, round parts or corners
  • 100% USA made steel - very durable
  • Heat-treated steel; no wear- and tear with drills
  • Alignment marks on either side of drill bit guides
  • Embedded hole numbers to easily see numbers on top of V-DrillGuide
  • Wood drilling, plastic drilling, metal drilling
  • It's like a portable drill press, light weight and can be used on job sites, field work, workshops, and many more!

3 Ways to Position the V-DrillGuide - Corners, Round or Flat Materials

Use the v-drillguide on wood corners

Use the v-drillguide on round pvc plastic

Use the v-drillguide on flat materials like metal, wood or plastic

Use on Corners

With the "V-Groove" bottom, the V-DrillGuide can rest on corner-like pieces. Drill on wood and confidently know the drilled hole will be perpendicular.

Use on Round Pieces

The "V-Groove" bottom allows the drill bit guide to set on round stock. Use on plastic PVC pipes, wooden dowels, metal round fencing, bicycles, and much more!

Use on Flat Materials

The "Precision Ground Base" on the bottom of the V-DrillGuide, allows for the drill bit guide to be used on flat surfaces. Straight holes every time - just like a drill press!

Drill Guide = V-DrillGuide

What is a V-DrillGuide?

This portable, handheld, drill bit guide allows you to drill straight holes all of the times, on many different drilling surfaces. For some projects, drilling straight is paramount. These guides eliminate guessing when perfection is required. Award-winning "v-groove" design by PTEN Innovation and Pro Tools Innovation Awards in 2015, 2016, 2018 & 2019. The "v-groove" allows drilling on corners and round stock. The precision ground base allows drilling on flat materials. Use the drill guide with wood, metal, plastic and more! 100% USA-made steel that's heat-treated for durability. Drill Straight - Every Time!

Drill Guide on corner metal piece showing hashmarks hashmarks on side of v-drillguide Embedded numbers in steel on V-DrillGuide STANDARD V-DRILLGUIDE STD3000DGNP V-DrillGuide Drill Set - 6 piece drill guides Metric V-DrillGuide 3-9.5mm, 17 hole - MDG1000DGNP
MINI V-DRILLGUIDE / SDGMINI 1/8"-3/8" V-DRILLGUIDE / SDG1000DGNP 3/8"-1/2" V-DRILLGUIDE / STD2000DGNP 33/64"-5/8" - STD3000DGNP DRILL SET - BGTDRILLSET 3-9.5MM METRIC V-DRILLGUIDE - MDG100DGNP
USA made ✓ ✓ ✓ ✓ ✓ ✓
How many drill holes? 21 17 9 8 81 17
Standard / Metric Sizing STANDARD STANDARD STANDARD STANDARD STANDARD & METRIC METRIC
Drill sizes #10, 21, 25, 29, 30, 1/8, 33, 7/64, 36, 37, 38, 40, 3/32, 43, 45, 47, 5/64, 50, 1/16, 53, 3/64" 1/8, 9/64, 5/32, 11/64, 3/16, 13/64, 7/32, 15/64, 1/4, 17/64, 9/32, 19/64, 5/16, 21/64, 11/32, 23/64, 3/8" 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2" 33/64”, 17/32”, 35/64”, 9/16”, 37/64”, 19/32”, 39/64”, 5/8” #10 - 5/8" - 81 different drill hole sizes - 1/64" increments - see listing for all sizing 3mm, 3.3mm, 3.5mm, 4mm, 4.2mm, 4.5mm, 5mm, 5.5mm, 6mm, 6.5mm, 6.8mm, 7mm, 7.5mm, 8mm, 8.5mm, 9mm, 9.5mm
Use on wood ✓ ✓ ✓ ✓ ✓ ✓
Use on plastic ✓ ✓ ✓ ✓ ✓ ✓
Use on metal ✓ ✓ ✓ ✓ ✓ ✓
Brand/Manufacturer Big Gator Tools Big Gator Tools Big Gator Tools Big Gator Tools Big Gator Tools Big Gator Tools
Center Alignment Marks ✓ ✓ ✓ ✓ ✓ ✓
Engraved Numbers ✓ ✓ ✓ ✓ ✓ ✓
V-DrillGuides, drill straight all the time with these drill bit guides made of USA steel,

Have it ready in the toolbox....

when you need a tool, you need it! These steel tools will last for generations to come. The drill bit guides are a handy tool that's portable to fit into awkward angles and allows you to drill straight almost anywhere! For some projects, drilling straight is paramount. Various sizes available!

  • The 90° "V-groove" design: allows use on corners & round surfaces. Flat base: able to use on flat surfaces
  • Lifetime Warranty & USA-made
  • 8 smooth drill hole sizes: 33/64”, 17/32”, 35/64”, 9/16”, 37/64”, 19/32”, 39/64”, 5/8”
  • Use on wood, metal, plastic & more!
  • Easy to use: hold the drill guide on the material, clamp & drill! Use on corners, round or flat surfaces
Material Alloy Steel
Shank Type Straight
Cutting Angle String 90 Degrees
Brand Big Gator Tools
Item Dimensions LxWxH 5.5 x 1.1 x 1.1 inches
